This front end we understand to have been used on the M450 and the M380. Ball joints are easily available and cross with several other class 8 front end builds. Spanner to remove and replace the parts are custom cut and also readily available.

Parts numbers and details to order is listed in parts finder tool of this website.

Call Greg to purchase a set of spanners today 951-830-5997. Meritor shows specs to cut a custom removal socket. Meritor information is available in factory files.



Meritor ball Joint

Upper smaller 29542 01 - Ball Joint  https://spareto.co.uk/products/lemforder-ball-joint/29541-01 confirmed

Lower larger 29541 01 - Ball Joint  https://spareto.co.uk/products/lemforder-ball-joint/29542-01 confirmed

Expect a import duty tax due   text from DHL a couple days prior to delivery approx $80. Import tax For upper and $120 for lower



basic CAD of spanners Bob Young provided. extension requires AutoDesk to open and must be retrieved from a Google Drive which require you sign in to your gmail. Call Mr OConnor for an email send to the Water Jet vendor if necessary.

https://drive.google.com/file/d/1dfnCl_jj-bqxr_35hRhyce9hlHrWr43I/view?usp=sharing

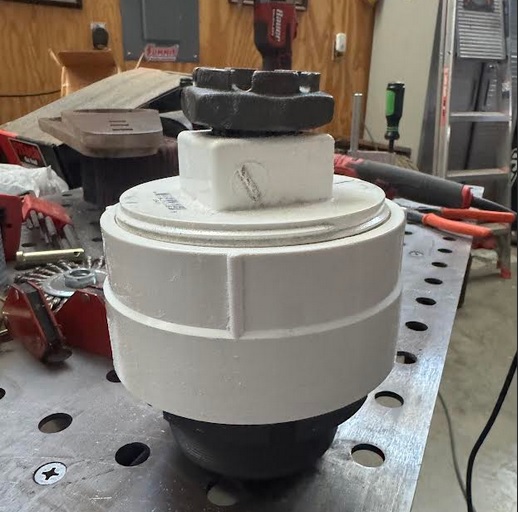

 tool to hold up wrench  by Bob Young

BobYtool
